In a world where business demands speed and precision, especially in the manufacturing industry, having the tools to meet these demands is essential. In an era where 3D technology plays a major role in the industry, portable 3D scanners are essential tools for manufacturers to unlock access to and acquisition of measurement data in all environments.
Portable 3D scanners are a great example of flexibility and mobility. Designed to be lightweight and portable, they help users simplify the process of capturing and processing data. This type of scanner is ideal for accessing tight spaces that are difficult to reach, especially for measurements that require moving around objects. This mobility is useful for scanning parts or objects in remote areas or outdoor locations where stationary scanners are not practical. On this occasion, MEGA Tech takes you to explore the new portable 3D scanner from ZEISS.

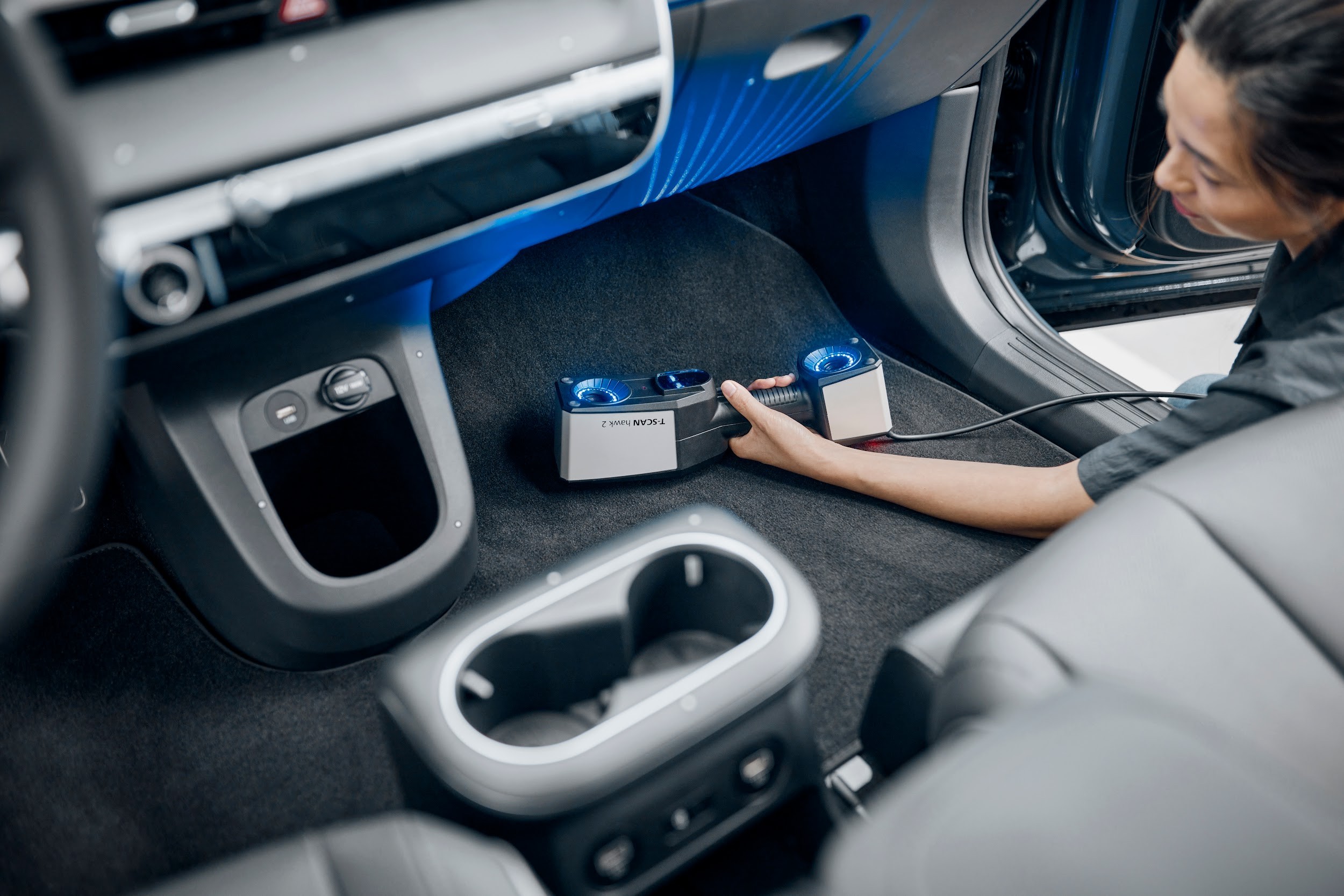

ZEISS T-SCAN hawk 2
ZEISS T-SCAN hawk 2 is a portable 3D scanner designed to meet all needs. Developed and produced in Germany, it is certified to meet the world’s highest industry standards. This scanner comes with state-of-the-art technology and comprehensive functionality to help you work more efficiently.
T-SCAN hawk 2’s Outstanding Technologies
This 3D scanner features metrology-grade precision with blue laser and enhanced ease of use. The red laser marker helps to determine the distance between the workpiece and the scanner. It works accurately in all environments. In addition, there is a special satellite mode that allows you to scan large workpieces without the need for photogrammetry or markers. Its Triple Scan Principle is ideal for measuring reflective surfaces and rough objects.
The outstanding function of T-SCAN hawk 2 operates with ZEISS INSPECT, the world class software for 3D inspection, which is part of the ZEISS Quality Suite. This software helps you analyze 3D data completely, covering dimensional measurement, tolerance inspection, and automatic report generation. also capable of analyzing in-depth information such as comparing to basic CAD files, GD&T analysis, and surface irregularity inspection.
Enhance your capabilities with ZEISS INSPECT Pro
• Native CAD Data: Supports importing and using of CAD files without conversion, reducing errors and improving inspection accuracy
• Parametric Inspection: Parametric analysis Allows for easy tracking and adjustment of inspections if source data changes or new designs are made
• Trend Analysis: Analyzes trends in scanned data to identify patterns and potential manufacturing errors
• Scripting: Supports scripting to automate inspection processes, reduce repetitive work and increase accuracy
• Digital Assembly: Simulate and inspect assembly parts digitally to reduce manufacturing errors and improve assembly processes
T-SCAN hawk 2 for Versatile Applications
• High accuracy: The T-SCAN hawk 2 delivers micron-level accuracy and meets ISO 10360 certification, giving you confidence in every measurement and inspection.
• Easy to use: Designed to adapt to your hand movements, with a remote workflow function that controls all operations via buttons on the scanner, making scanning easy even for beginners
• Large-size workpieces: With satellite mode, markers are not required. You can scan large parts without losing accuracy.
• Save time: Scanning and data analysis processes are faster. With ZEISS INSPECT, you can work faster and more efficiently.
Application Examples:
• Automotive industry: Scan and inspect automotive parts, such as body panels or engine components, to check for tolerances and production quality.
• Aerospace industry: Scan large aircraft parts, such as wings or aircraft bodies, to analyze the structure and accuracy.
• Medical industry: Scan medical devices or prosthetic parts to check their accuracy before mass production.
• Mold and parts industry: Scan molds or parts to compare them with CAD drawings, and check for errors.
• Product design and prototypes: Used in the design and development processes of new products, allowing prototypes to be precisely customized.
Conclusion
Portable 3D scanners are no longer an option, they are essential for modern operators. Whether it is for part modeling, outdoor machinery maintenance , or prototype inspection, the ZEISS T-SCAN hawk 2 is not only a modern tool but also a solution that will help you improve your work efficiency. With its high accuracy, ease of use, and comprehensive functions, the ZEISS T-SCAN hawk 2 3D scanner is the solution to all your work needs to increase efficiency and competitiveness.
Article by: MEGATech & Factory Max Co., Ltd. << Click Here
