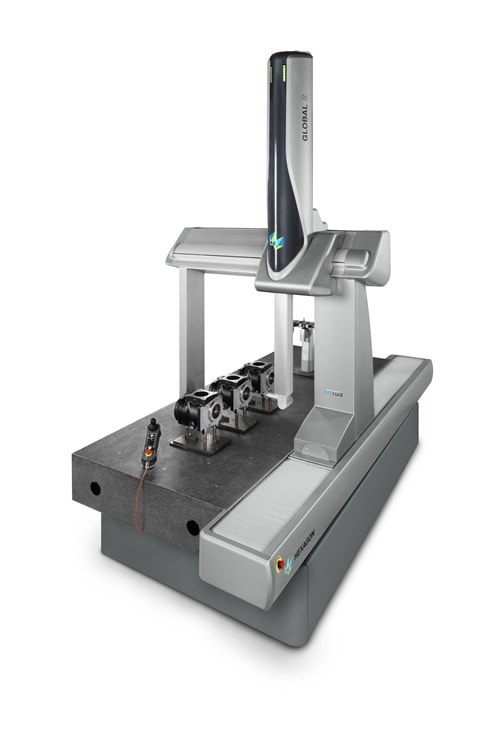

Designed by Pininfarina and powered by the Hexagon Manufacturing Intelligence Enhanced Productivity Series (EPS) concept, GLOBAL S combines smart technologies including user experience enhancements, advanced software and eco-friendly options to provide measurement solutions with three performance levels: Green, Blue and Chrome, to suit the requirements of your application. EPS machines allow you to select your main productivity driver: throughput, precision, flexibility or shop-floor measurement, and configure the machine with the best capability package for that driver. GLOBAL S can also be fully-customised to suit the most challenging production environments.
1. MPE(E0/E150) – (18 oC – 22 oC) (ISO 10360-2:2009) : 1.3 + L/333 µm
2. MPE(PFTU) (ISO 10 360-5:2010) : 1.4 µm
3. MPE(THP)/MPT (ISO 10360-4:2000) : 2.1 µm / 30s
4. Measuring System scales system resolution: 0.005 μm
5. Maximum 3D Speed : 860 mm/s
6. Maximum 3D Acceleration : 4,300mm/s2
7. Measuring Range XYZ (mm) : 700 x 1000 x 660
8. Maximum Part weight (kg) : 900
