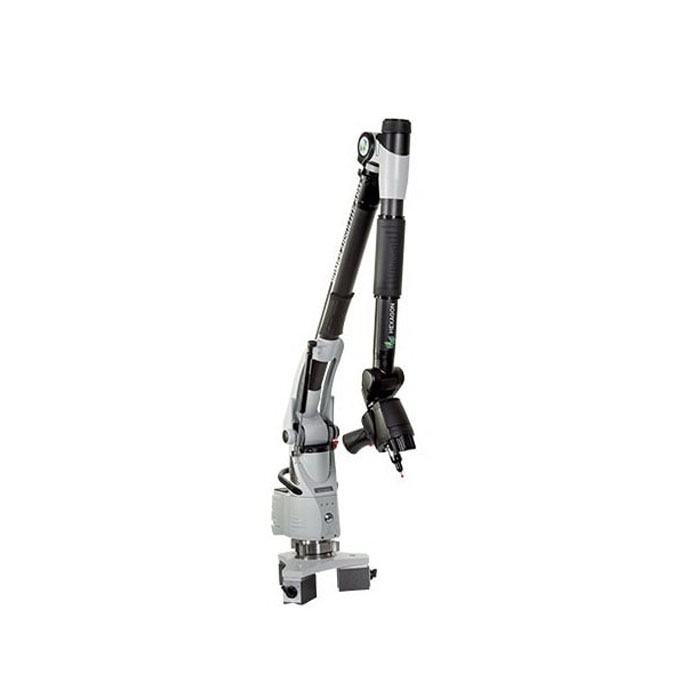

Switching seamlessly between tactile probe measurement and laser scanning at any time, the ROMER Absolute Arm with Integrated Scanner is ideally suited to point-cloud inspection, product benchmarking, reverse engineering, rapid prototyping, virtual assembly and CNC milling. The fully-certified and integrated RS4 laser scanner is designed to capture 3D point data across a range of surface types. It requires no calibrations, warm-up time or additional cables and controllers. It is totally integrated. With a ultra-wide laser stripe of up to 150 mm, the RS4 can capture 752,000 points per second, reducing the number of passes required to fully scan a part and minimising overall measurement time. The accuracy of the complete scanning system is fully verifiable and traceable, ensuring users always have complete confidence in the exactness of their measurements. The ROMER Absolute Arm with Integrated Scanner is available at three different accuracy levels – 73, 75 and 77 series – to ensure the right configuration is available for any measurement application.
Measurement Volume Available in six sizes providing measurement volumes with diameters between 2.0 m and 4.5 m.
Automatic Probe Recognition Swap probes at any time without the need to recalibrate – repeatable mounting allows probe changes on the fly according to measurement needs.
Robust Feedback Instant visual, acoustic and haptic feedback allows the system to be used accurately and efficiently in even the harshest industrial environments.
Total System Certification Full B89.4.22 certification for the entire arm and scanner system, with additional certification according to VDI/VDE 2617-9 also available.
Absolute Encoders Referencing and warm-up time is a thing of the past – just switch on and start measuring.
Arm Balance Optimised design echoing the uneven arm-length ratio typical in industrial robot design makes the arm lighter and easier to use.
Zero G Counterbalance system minimises torque in the base of the arm, allowing effortless user movement, greater accuracy and a wealth of mounting options, including lightweight tripods and magnetic and vacuum bases.
SmartLock Lock the arm safely in the rest position when not in use, or conveniently fix the arm in any intermediate position during measurement.
Carbon-fibre Structure High-tech materials make arm measurement secure and thermally stable under any environmental condition.
SpinGrip and SpinKnob Rotating low-friction handling grips improve ergonomics, minimise user fatigue, provide thermal stability and maximise accuracy.
Ergonomics Wrist structure, hand grip design and intelligent button positioning allow for total control over arm alignment and adjustment.
RDS Proprietary software featuring SMART – Self-Monitoring Analysis and Reporting Technology – that manages the arm in the field by monitoring diagnostics including shocks and temperature.
RDS Mobile Compatible with all WiFi enabled systems, the RDS Mobile app allows users to connect directly from a mobile device to access simple probing and scanning functions and diagnostic operations.
Feature Packs Easily interchangeable Feature Packs enhance functionality for all arm models, from WiFi connection and laser scanning to full battery-powered operation.
Compatibility Works with all major metrology software packages.
