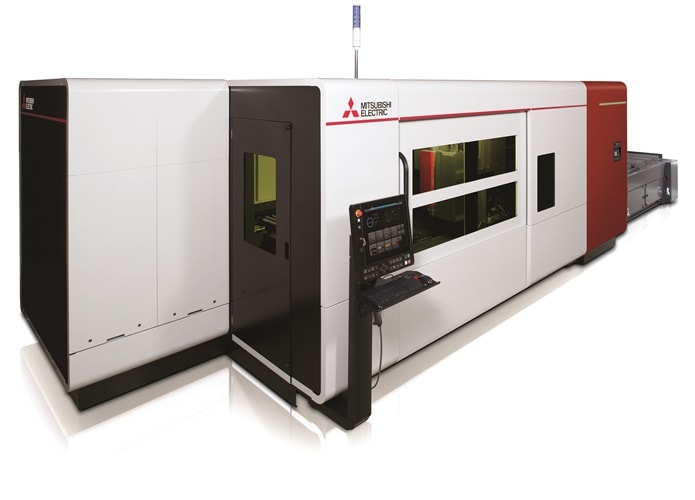

เครื่องตัดไฟเบอร์เลเซอร์ Mitsubishi รุ่น THE GX-F SERIES

Availability: In Stock

  • Machine concept:  Flying optics
  • Control:  D-CUBES – 19” Mitsubishi Electric Touchscreen
  • Axis travel path: X-axis 3.100 mm
    Y-axis 1.565 mm
    Z-axis 120 mm
  • Repeat accuracy: ± 0.01 mm
  • Max. sheet size:  3,050 x 1,525 mm
  • Max. weight per sheet: 950 kg
  • Laser type: F40 / F60 / F80
  • Laser power: 4 / 6 / 8 kW
  • Processing head: ZoomHead

The laser cutting systems of the GX-F series are based on the highly efficient fiber laser technology and thus enable highest cutting speeds due to the wavelength of 1.07 µm. Non-ferrous metals can also be processed economically.

They guarantee maximum performance when processing sheets up to 28 mm thick with dimensions of 3,050 x 1,525 mm.

The GX-F machines are equipped as standard with an automatic pallet changer for maximum productivity.

2025

  • Machine concept:  Flying optics
  • Control:  D-CUBES – 19” Mitsubishi Electric Touchscreen
  • Axis travel path: X-axis 3.100 mm
    Y-axis 1.565 mm
    Z-axis 120 mm
  • Repeat accuracy: ± 0.01 mm
  • Max. sheet size:  3,050 x 1,525 mm
  • Max. weight per sheet: 950 kg
  • Laser type: F40 / F60 / F80
  • Laser power: 4 / 6 / 8 kW
  • Processing head: ZoomHead

คำอธิบาย

https://youtu.be/m83brKX4TT4

The laser cutting systems of the GX-F series are based on the highly efficient fiber laser technology and thus enable highest cutting speeds due to the wavelength of 1.07 µm. Non-ferrous metals can also be processed economically.

They guarantee maximum performance when processing sheets up to 28 mm thick with dimensions of 3,050 x 1,525 mm.

The GX-F machines are equipped as standard with an automatic pallet changer for maximum productivity.

ข้อมูลเพิ่มเติม

Brand

Mitsubishi
