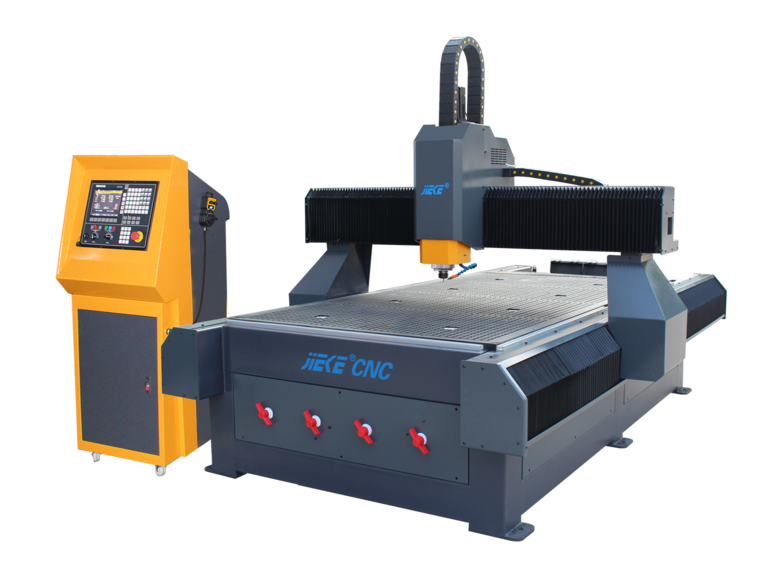

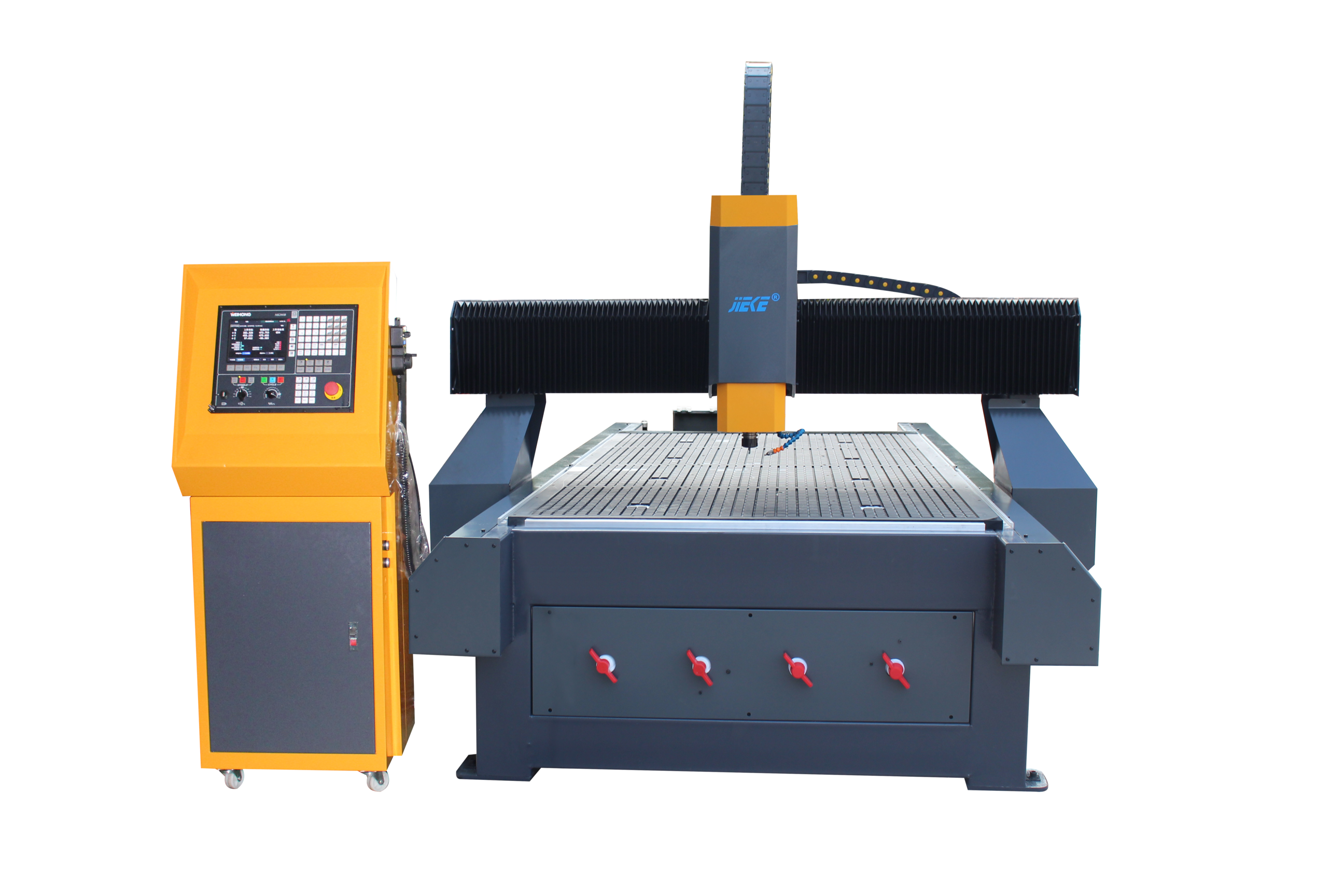

Procurement Centre (Thailand) Co., Ltd. has imported a CNC Router from the GTDI brand for distribution. In this column, MEGA Tech would like to present the JK-G5 model, with the benefits that will be obtained from this machine mentioned in this article.
Benefits
1. The gantry of the machine is made of metal which is welded and in high precision.
2. Linear square rails on x, y and z axis are used to guarantee high accuracy and stable performance, and support heavy weight. The square sliding blocks are of good dust-proof effect. Oil feeding and lubricating system make the regular maintenance very easy. All guide ways we use are imported to guarantee the quality and requirement from our consumers.
3. 25mm linear ball bearing profile rails for maximum stiffness, imported screws and rack, offers fast and steady moving.
4. Breakpoint memory enables the machine to continue the unfinished work after work shift or accidents, such as tool breaking.
5. Compatible with many CAD/CAM software, such as Type 3, Artcam, Castmat, Wentai, JD Paint etc.
6. We use the double motors in Y axis which is more stable and has little noise when the machine is working.
7. Imported servo motor which can bring more stable movement and low noise when working.
8. With speed reducer which can improve the torque to cut much more thickness.
Specification
| X.Y Working Area | 1300*2500mm |
| Z Working Area | 260mm or bigger |
| Lathe Structure | Whole Iron |
| Transmission way | rack and pinion |
| Guide Way | Linear Square Rail |
| Max Idling Speed | 30 m/min |
| Spindle | 7.5KW Water-cooling |
| Spindle Rotate Speed | 6000-24000RPM |
| Inverter | JIEKE Inverter |
| Working Voltage | AC 220V/380V/50HZ |
| Command | G Code HGPL |
| Operating | NC STUDIO NK280B |
| Cooling Mode | Water Cooling |
| Working-Holding | Vacuum table (devided into 4 parts) including 7.5KW vacuum pump |
